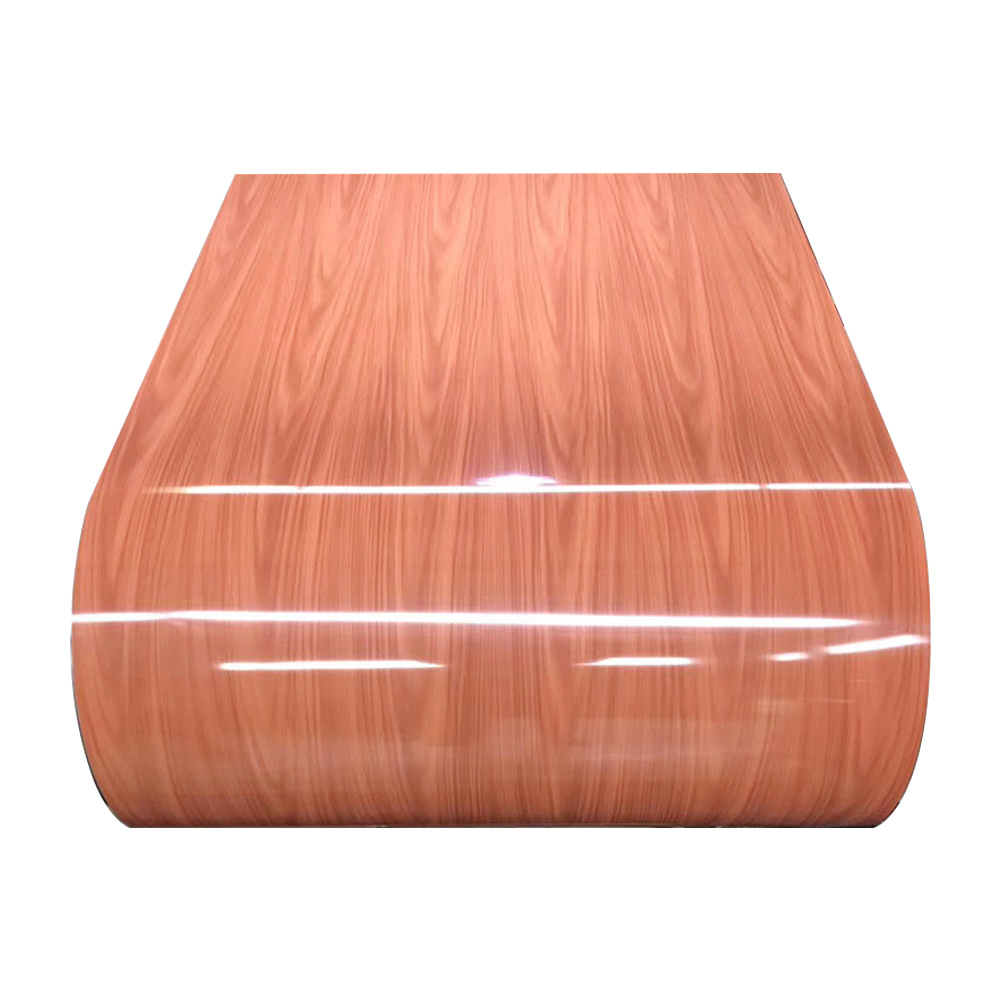

Ppgi Ppgl Pre-paint galvanized/galvalume steel coil

Ppgi Ppgl

13011706277

18365985126

inquiry@sdjintaimetal.com

PRODUCT DETAILS

PRODUCT PARAMETERS

STOCK PACKAGING

Color coated steel coil is a product made of cold-rolled steel coil and (aluminum) galvanized steel coil after surface chemicaltreatment, coating (roll coating) or composite organic film (PVC film, etc.), and then baking and curing. It not only has the properties of high mechanical strength and easy forming of steel materials, but also has good decoration and corrosion resistance of coating materials.

Color coated steel coil is mainly divided into three parts: construction, household appliances and transportation.

Building is generally used to build the roof, wall and door of industrial and commercial buildings such as steel structure workshop, airport, warehouse and freezer.
Household appliances are used in the production of refrigerators and large air conditioning systems, freezers, toasters, furniture, etc.

Transportation industry is mainly used for oil pan, automobile interior parts, etc.

Product Parameters

Grade	SGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z,SGCE/DX54D+Z, SGCH.......
Thickness	0.12-2.0mm
Tolerance	Thickness: ± 0.02mm
Width	600-1250mm ( Normal:1250, 1220,1200,1000 mm)
Top/BackPaint	10-25 micron(Normal:10-12mic)/5-12 micron(Normal:5-7mic)
Zn coated	30-400gsm
Coil weight	3-8 tons or as your requirement.
ID	508/610 mm
Coating type	Top paint: PE, SMP, HDP, PVDF, PU
	Functions: Decorative, Machinability, Weather resistance, Scrath resistance, Stain resistance, Chemical resistance, Adhesion resistance
	Primer paint: Polyurethane, Epoxy, PE
	Functions:Machinability, Corrosive resistance, Adhesion, Scrath resistance
	Back paint: Epoxy, Modified polyester
	Functions: Scrath resistance, Bending adhesion, Corrosive resistance
Type of coating process	Front: Doulbe coated & double drying
	Back: Double coated & double drying, single coated & double drying
	Double coated & double drying is used for corrugated sheet
	Double coated & single drying is for sandwich panel
Application	Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings
Packing	Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet.
