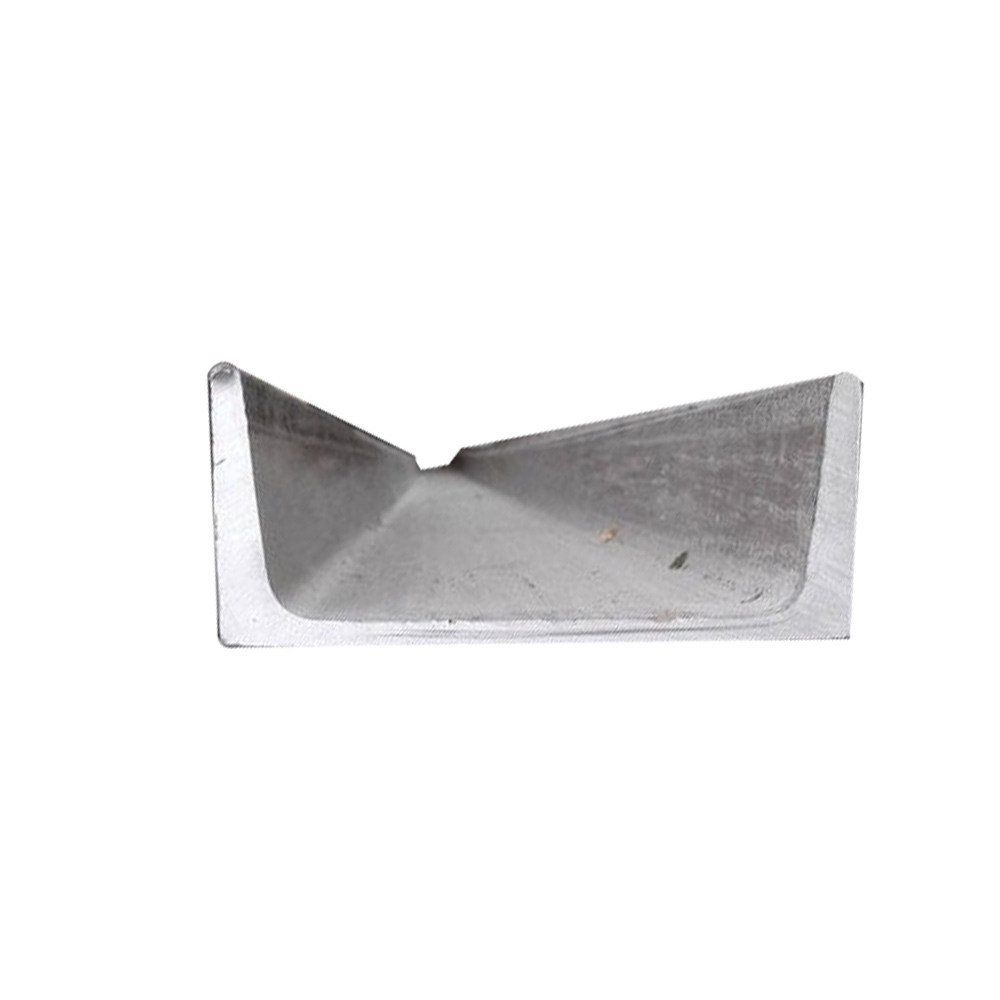

Cold Formed Profile Steel U Shape Structural Steel U Channel for Construction
Customized Structural Steel Profiles U Shape Steel Channel U/C/Z/L Plain Profile Channel Steel
13011706277
18365985126
inquiry@sdjintaimetal.com
Contact us
PRODUCT DETAILS
PRODUCT PARAMETERS
STOCK PACKAGING

Channel steel is a groove shaped section of long steel, belongs to the construction and mechanical structural steel, is a complex section of steel steel, its section shape is groove. Channel steel is mainly used in building structure, curtain wall engineering, mechanical equipment and vehicle manufacturing.

In use, it is required to have good welding, riveting and comprehensive mechanical properties.

Finished channel steel is delivered by hot working, normalizing or hot rolling.


Product
Channel steel

Size
1. Web Width (H): 37mm-88mm
2. Flange Width (B): 50-400mm
3. Web Thickness (t1): 4.5-8mm
Length
6000mm,12000mm or customized
Technique
Hot rolled
Grade
Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 etc.
Inspection
SGS BV INTERTEK
Standard
ASTM,GB,JIS,EN,etc.
Product Keywords
C/U/Z  channel for construction, building
Delivery Time
Within 7 working days after receiving deposit, up to order quantity
Shipping
1) Shipping by containers
2) Shipping by bulk ship



                                                                   Standard Equivalent


China
GB/T, YB

America
ASTM

Japan
JIS

Germany
DIN EN

England
BS EN

France
NF EN

ISO

Q195

Grade B



SS330
SPHC

S185(1.0035)

E185
Fe(310)

Q215

Grade C
CS Type B



Q235-A

Grade D

SS400

S235JR (1.0038)

E235 A
E235 B
E235 C
E235 D

Q235-B

S235J0(1.0114)

Q235-C

S235J2(1.0117)

Q235-D


S235JR(1.0038)

Q275

SS Grade
40 (275 )

SS490

S275JR(1.0044)
S275J0(1.0143)
S275J2(1.0145)

E275
(Fe430)

Q345-A

Grade
50 (345)

SPFC590

E355(1.0060)

E355

Q345-B

S355JR(1.0045)

Q345-C

S355J0(1.0553)

Q345-D

S355J2(1.0577)

Q345-E

S355NL(1.0546)

EUROPEAN STANDARD CHANNEL STEEL(UPN)

UPN U CHANNEL STEEL.png

EUROPEAN STANDARD CHANNEL STEEL(UPE)

UPE CHANNEL STEEL.png






Product Parameters
SPECIFICATIONS FOR CHANNEL STEEL

INTRODUCTION
Product
channel steel
Standard
ASTM,BS,GB,JIS,etc
Grade
SS400, ST37-2, A36, S235JRG1, Q235, Q345 etc

SPECIFICATIONS
Product Keywords
C U Z channel for building
Manufacturing technique
Hot rolled(elementary) Can be processed again repeatedly
Strength of extension
A36/420MPa S355JR/485MPa

Shipping
Technique
Hot Rolled or cold rolled
Delivery Time
10~20days
Shipping
1)Shipping by containers
2)Shipping by bulk ship
SPECIFICATION
SIZE
KG/M
5#
50*37*4.5
5.438
6.3#
63*40*4.8
6.634
8#
80*43*5.0
8.045
10#
100*48*5.3
10.007
12#
120*53*5.5
12.059
14#A
140*58*6.0
14.535
14#B
140*60*8.0
16.733
16#A
160*63*6.5
17.24
16#B
160*65*8.5
19.752
18#A
180*68*7.0
20.174
18#B
180*70*9.0
23
20#A
200*73*7.0
22.337
20#B
200*75*9.0
25.777
22#A
220*77*7.0
24.999
22#B
220*79*9.0
28.453
25#A
250*78*7.0
27.41
25#B
250*80*9.0
31.335
25#C
250*82*11.0
35.26
28#A
280*82*7.5
31.427
28#B
280*84*9.5
35.823
28#C
280*86*11.5
40.219
30#A
300*85*7.5
34.463
30#B
300*87*9.5
39.173
30#C
300*89*11.5
43.883
32#A
320*88*8.0
38.083
32#B
320*90*10.0
43.107
32#C
320*92*12.0
48.131
36#A
360*96*9.0
47.814
36#B
360*98*11.0
53.466
36#C
360*100*13.0
59.118
40#A
400*100*10.5
58.928
40#B
400*102*12.5
65.204
40#C
400*104*14.5
71.488
