Q235B Q345B I beam channel steel Galvanized Structure steel beam
European standard IPN IPE I Beam Section steel
13011706277
18365985126
inquiry@sdjintaimetal.com
Contact us
PRODUCT DETAILS
PRODUCT PARAMETERS
STOCK PACKAGING

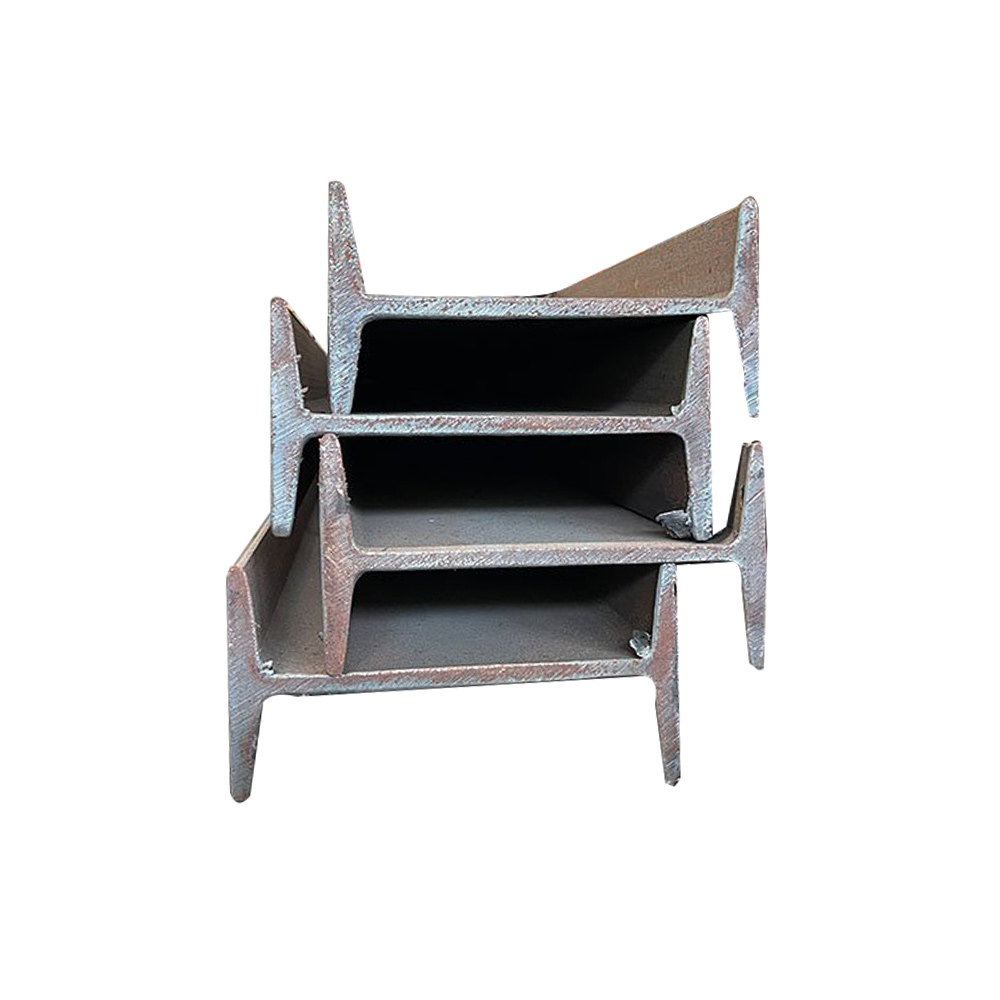

I-beam, also known as steel beam (English name universal Beam), is a long steel with the section of the I-shaped. I-section steel is divided into hot rolIed I-beam and lightweight I-beam
I-beam is mainly divided into ordinary I-beam, light I-beam, low alloy light I-beam .
The wing of ordinary I-beam and light I-beam gradually thinner from the root to the side, with a certain Angle. The type of ordinary I -beam and light I-beam is expressed by the Arabic number of its waist height in centimeters. . I-beam is mainly used in building structure, curtain wall engineering, mechanical equipment ,vehicle manufacturing and so on.



Product Name
European Standard IPE Beam, European Standard IPE AA Beam
Standard
S235JR, S275JR,SS400,ASTM36,S355jr,S235jo, Q235B,Q345B,SS304 ,SS316,etc

Size
Size: IPE80 - IPE270
Dimensions:
D: 80mm-270mm
F: 46mm-135mm
Tw:3.8mm-6.6mm for IPE Beam and 3.2mm-4.7mm for IPE AA Beam
Tf: 5.2mm-10.2mm for IPE Beam and 4.2mm-7.4mm for IPE AA Beam
Surface Treatment

black,galvanized,oiled,painted

Applications
Petroleum, chemical, machinery,electric power, shipbuilding, construction ,building bridge and steel etc.
Packaging
1. Standard export package
2. In bundles with steel strips
3. As the requirements of the customers


IPE I BEAM.png

IPN I BEAM.png







I-beam steel is a type of steel beam made of rolled steel, it is named because its section is the same as the letter "I". Since all parts of I-beam steel are arranged at right angles, I-beam steel has been widely used for its advantages of strong bending resistance, simple construction, cost saving, and light structural weight.The section shape of I-beam steel is reasonable, and its mechanical properties are great. Because the inner and outer sides of the legs are parallel and the leg ends are at right angles, the welding and riveting work can be saved by 25%. With large bearing capacity and good section stability, it is commonly used for large buildings, such as factories, as well as bridges, ships, lifting, and transportation machinery, equipment foundations, supports, foundation piles, etc.



StandardASTM, ASME, EN, BS, GB, DIN, JIS, etc
Surface TreatmentTwo lays of Anti-rust Painting,Hot Dip Galvanized,Black
MaterialG350 S275JR S355JR,SS400,ASTM36,S235jr,S235jo, Q235B and Q345B etc.
Size1.Web Width (H): 100-900mm
2.Flange Width (B): 100-300mm
3. Web Thickness (t1): 5-30mm
4. Flange Thickness (t2): 5-30mm       Or Customers' requirements
Advantages1. Lower cost with better quality.
2. High safety performance.
3. Easy to assemble and dismantle.
4. Manufacture under complete
quality control system - ISO9001.
5. Installation with instruction of experienced engineers
6. Non-pollution.
ApplicationIt is widely used in beam and column components of industrial and civil construction steel structure. Steel structure load-bearing support for industrial structures. Ship and machinery manufacturing frame structure. Steel piles and supporting structures of underground engineering, etc.
Nominal Size (mm)Depth of Section (mm)Flange Width (mm)Flange Thickness (mm)Web Depth (mm)Web Thickness (mm)Weight (kg/m)Metres/ Tonne (m/t)9m10.5m12m13.5m15m16.5m18m
100 x 50100506.70874.208.33120




125 x 65125657.501104.7011.9084




150 x 75150759.501316.0017.7057
180 x 751807511.001586.0020.9048
200 x 752007512.001766.0022.9044
230 x 752307512.002066.5025.1040
250 x 902509015.002208.0035.5028
300 x 903009016.002688.0040.1025
380 x 10038010017.5034510.0055.2018
50 x 255025


3.83261
